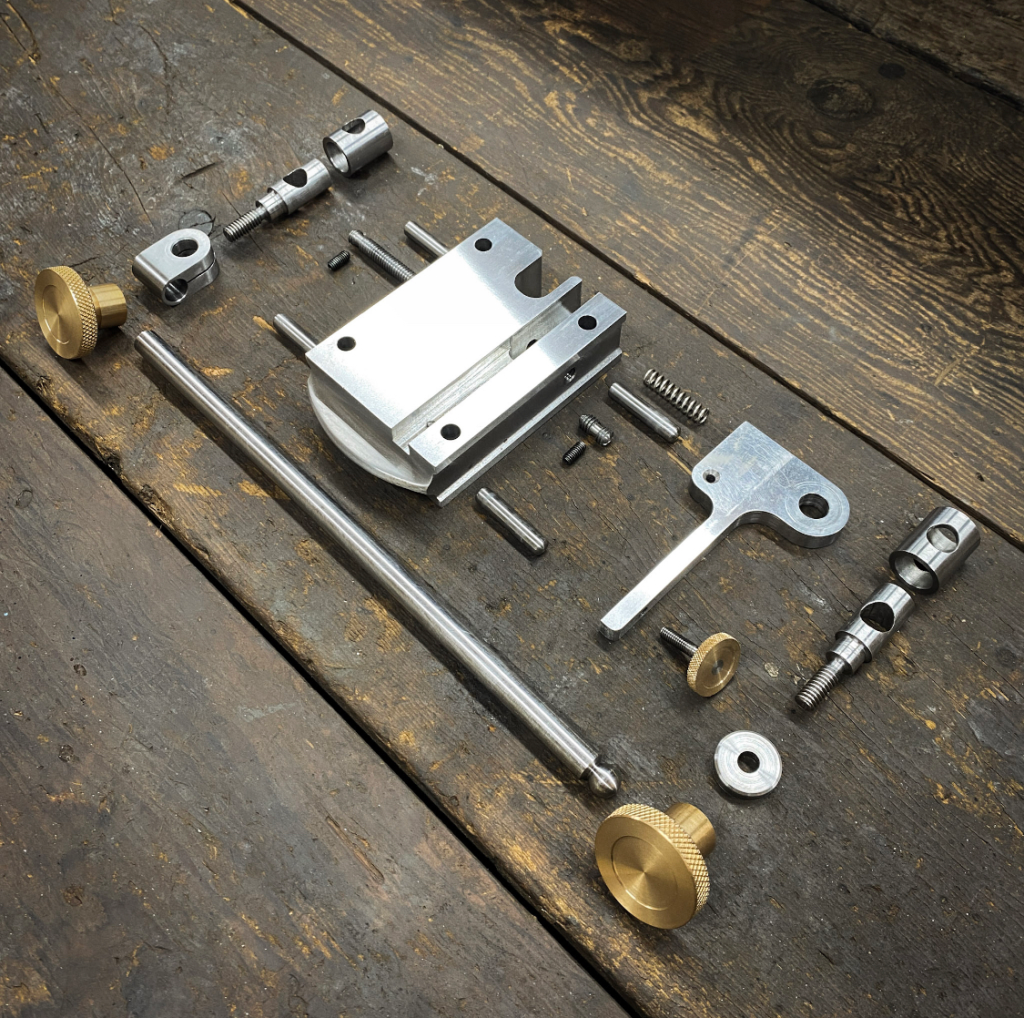

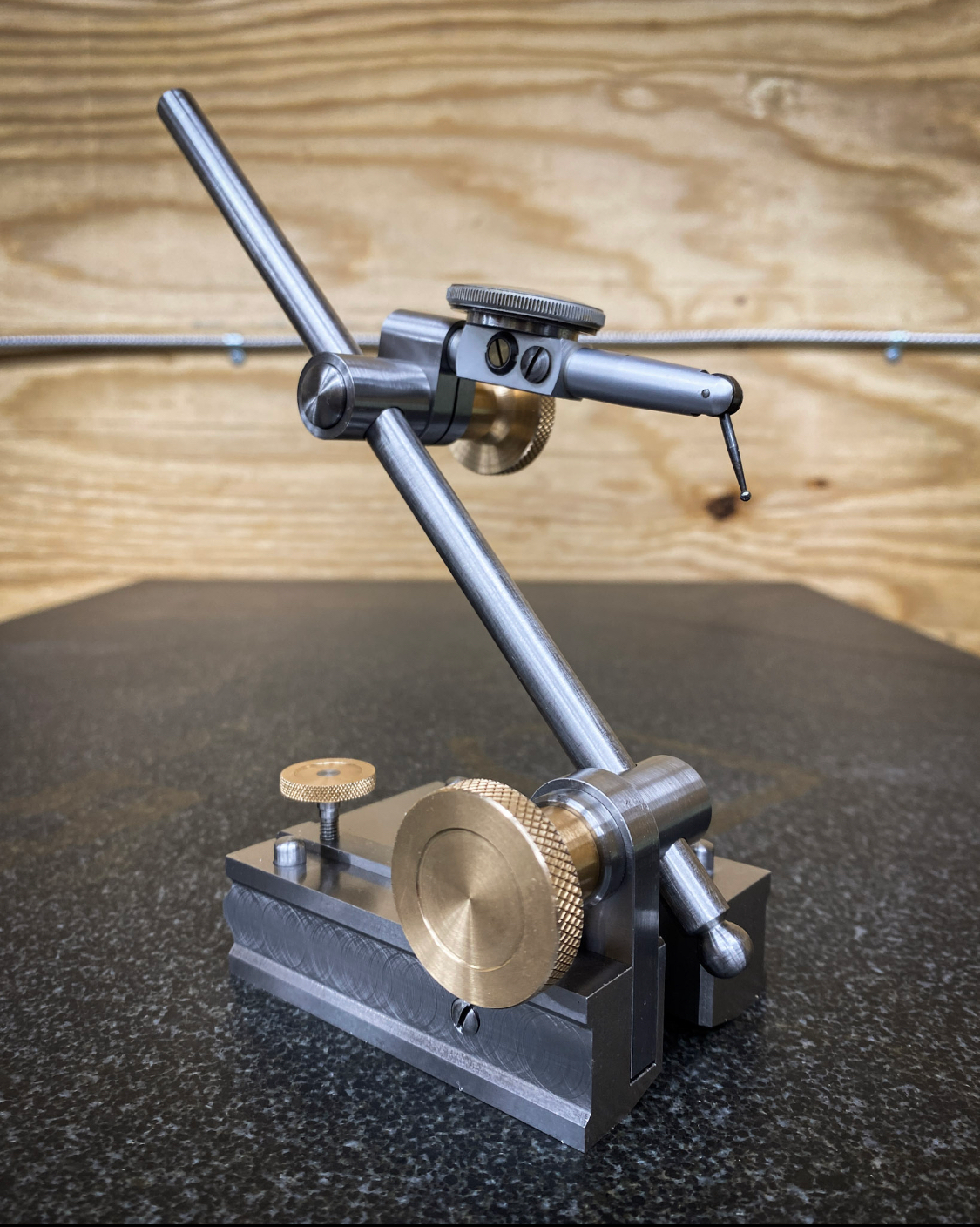

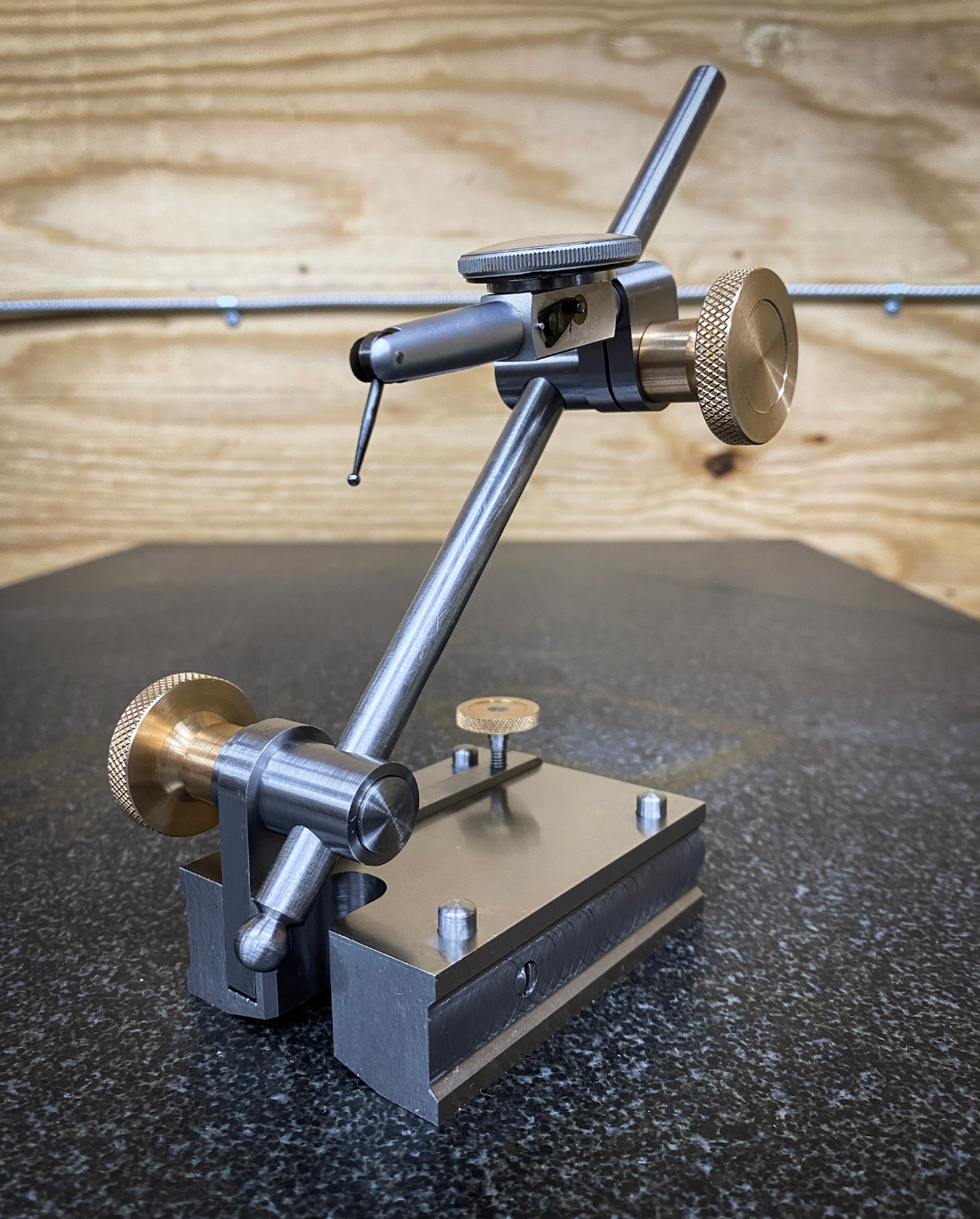

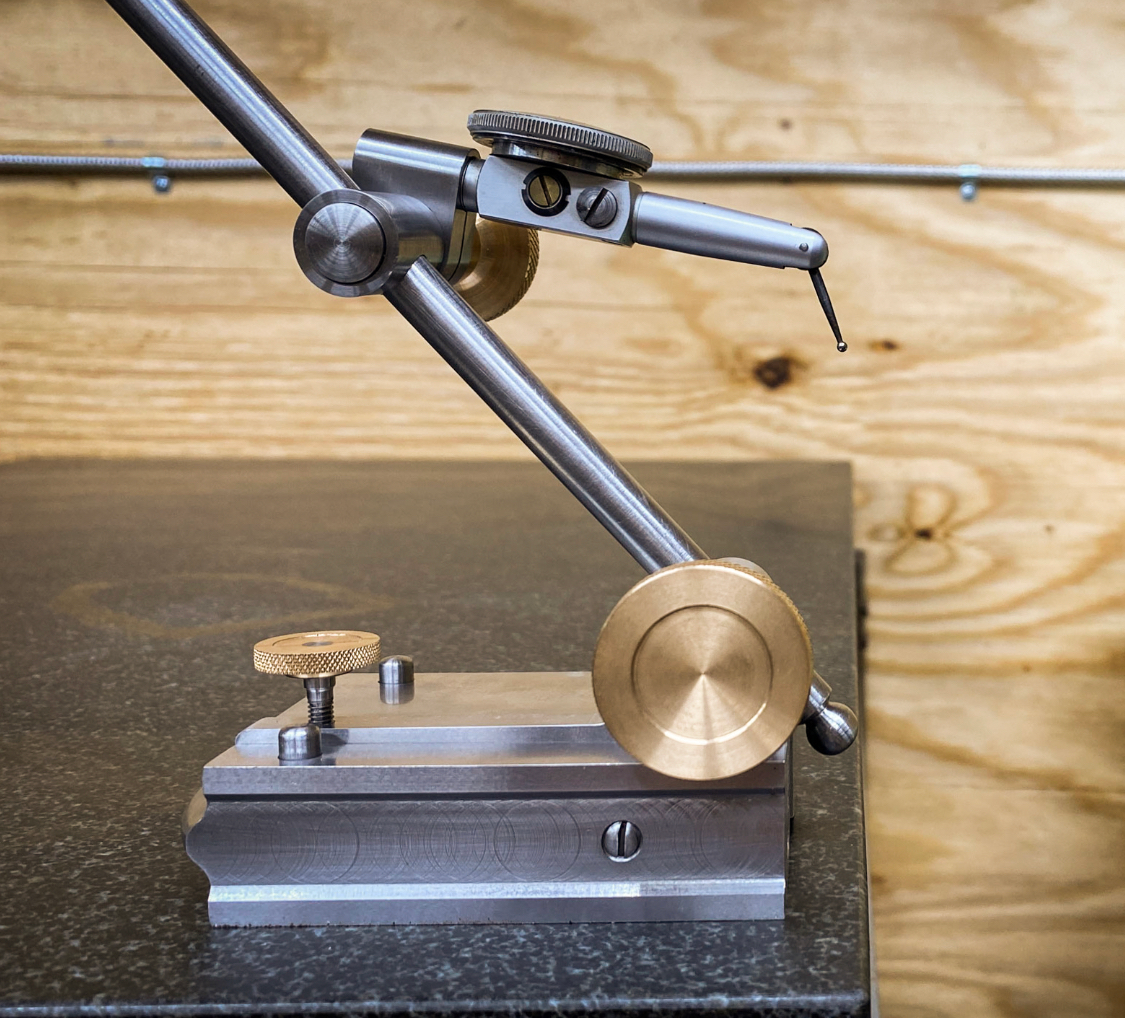

So you need a new surface gauge?? Excellent. Here are the drawings I used to make in this video.
The drawings show the revisions made during the build.
Including:
– The curved squareness comparator end
– The narrower pocket for the arm
– The shorter arm
Also not show:
– The decorative detail on the knob faces
– The cleared section of threads on the pivot screws
If you decide to tackle this project please shoot me a pic!. I would love to see!
After your purchase, you will receive an email confirmation of the order with a link to download the drawing PDF. If you have any questions just give me a shout at contact@inheritancemachining.com.
Note: This purchase is for a technical drawing only. This is not for a physical product.
