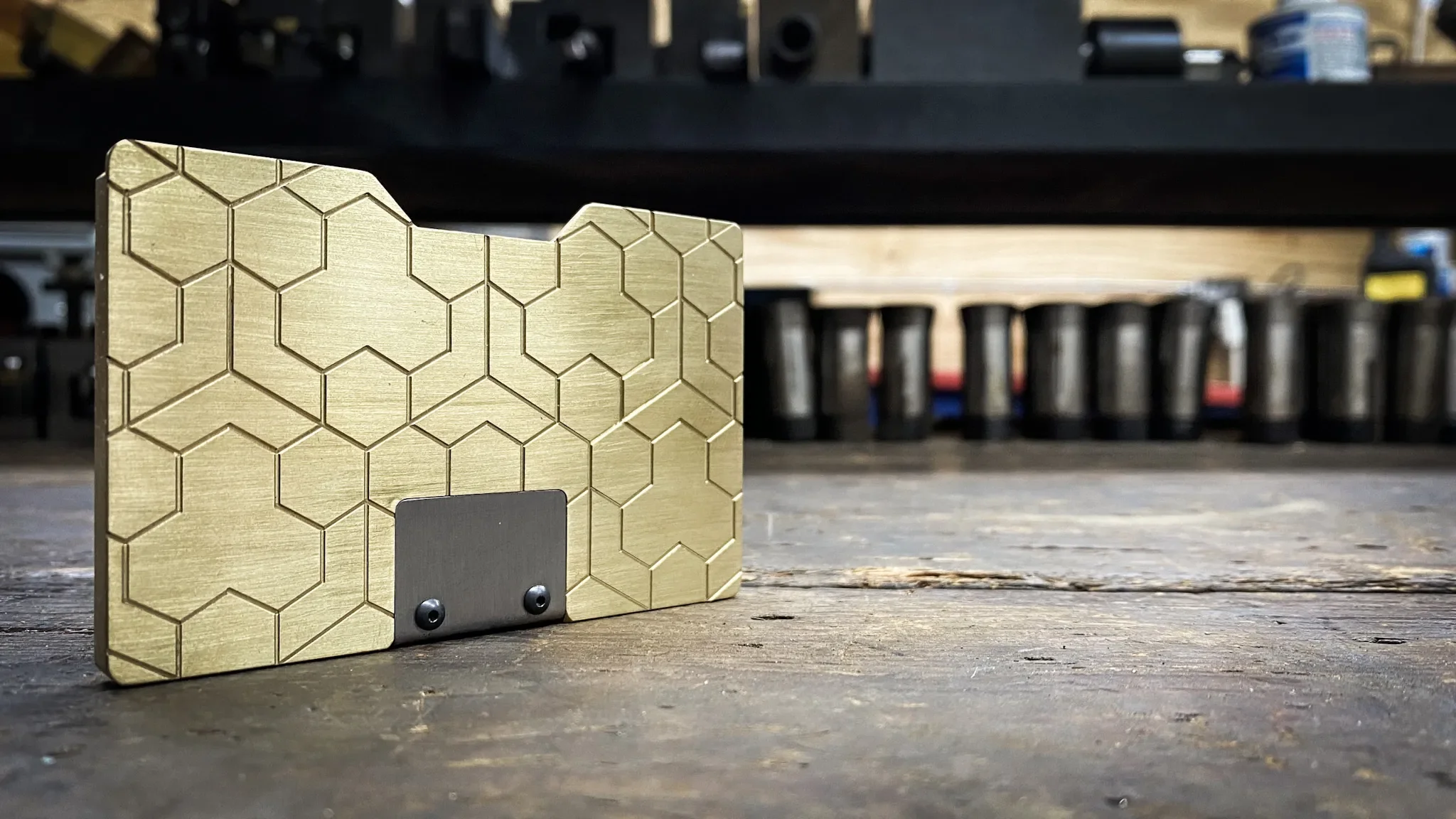

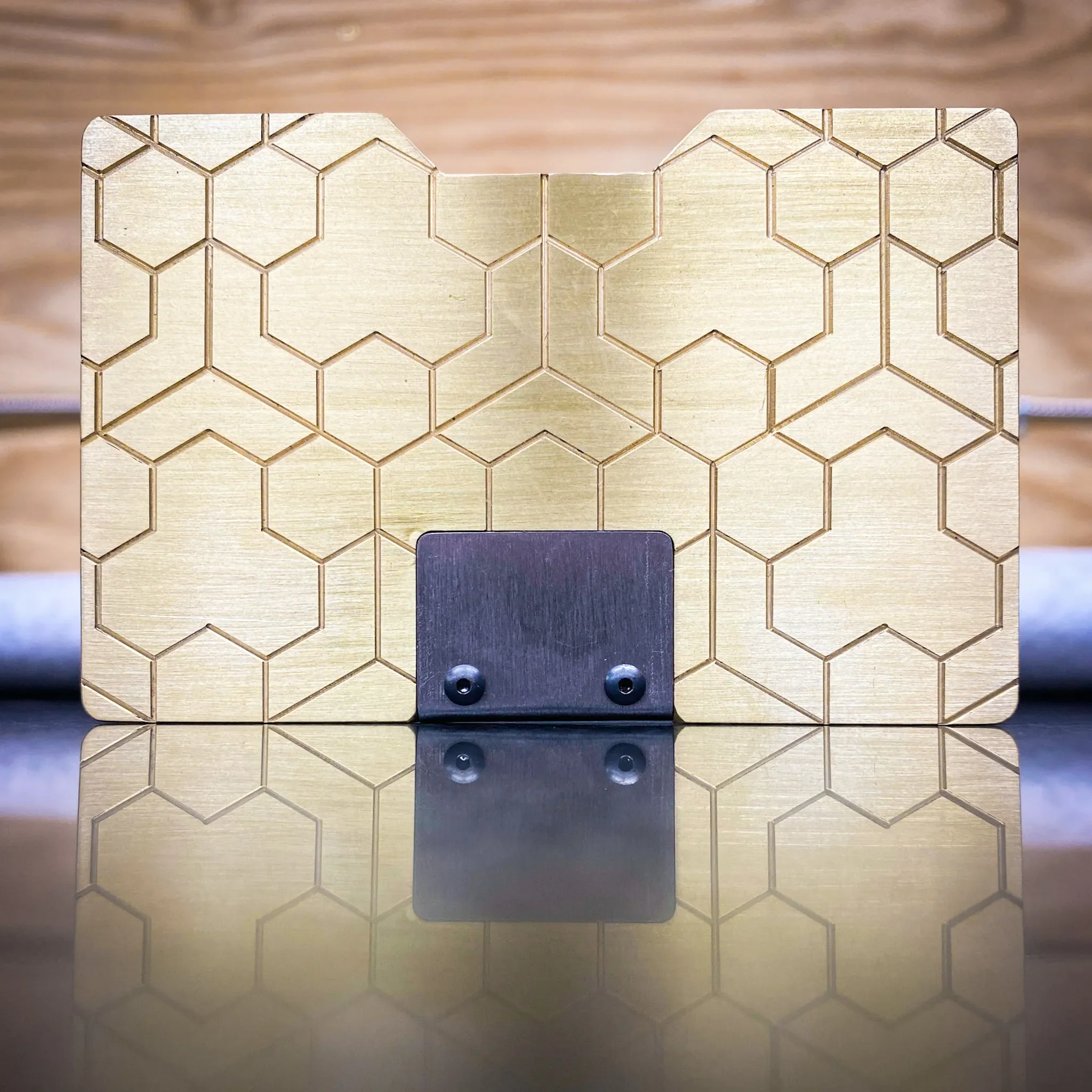

This purchase is for a copy of the drawings for the low profile wallet design in this video.
Materials used here are 360 Brass and brushed 304 Stainless Steel sheet.
You will also need 2x #2-56 button head cap screws approximately 3/16″ long.
I’ve included dimensions for the pattern I chose if you’d like to copy that as well.
Also, If I were to do this again I would make the clip from slightly thinner steel. Probably in the 0.015-0.020″ range as opposed to the 0.031″ I used.
If you make your own I would love to see what you come up with!
After your purchase, you will receive an email confirmation of the order with a link to download the drawing PDF. If you have any questions just give me a shout at contact@inheritancemachining.com.
Note: This purchase is for a technical drawing only. This is not for a physical product.
